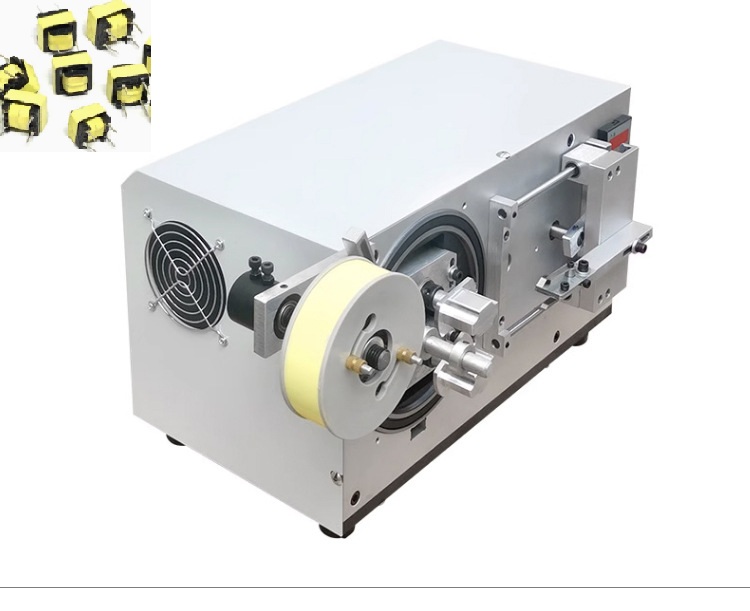

This auto taping machine is idea for taping of various high and low frequency transformers, inductor coils, heatsinks, relays, chargers, etc. It is controlled by a single-chip microcomputer and operated by an electric motor, with high quality, high efficiency and low noise. capacity requirements : about 3000pcs/h
Machine Size: L430xW300xH260mm, weighing about 25KG.
Main part is made of S45C steel.
Can be customized according to your taping requirement .
Machine feature :
1. Work on both vertical and horizontal transformer
2. Easy to change fixture when taping different transformer.
3. Tape position can be fine-tuned.
4. Tapping turn can be set arbitrarily (speed can be adjusted arbitrarily)
5. Manual and automatic function.

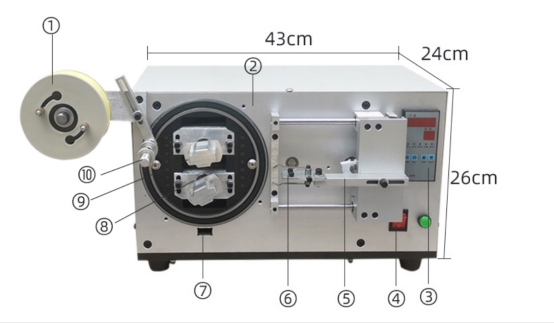

① Tape holder
② Adjustment screw: adjust the height of the motor to tape different sizes of transformers. Please loosen the screws for fixing the motor first. You need to open the case of the machine.
③ Controller: control the motor, cutter and movement. Please use manual mode to adjust the machine. Please be careful when adjusting machine .
④ Power switch
⑤ slide cutter module (optional)
⑥ Knife holder: shrapnel or brush type.
⑦ Automatic unloading
⑧ Fixture holder: adjust motor for position match ( Both up and down), higher value for big size products. Please be careful when adjusting it
⑨ jig: hold the product and need to replace it when taping different product
⑩ tape guide bar: adjust the tape tension from up and down, the wheel is used to limit the tape front and back position.
