PN | Applicable wire dia(mm) | Tension range (g) |
A-30 | 0.02-0.06 | 3-30 |
A-100 | 0.04-0.12 | 10-100 |
A-200 | 0.06-0.16 | 20-200 |
A-600 | 0.12-0.35 | 60-600 |
A-1000 | 0.15-0.45 | 100-1000 |

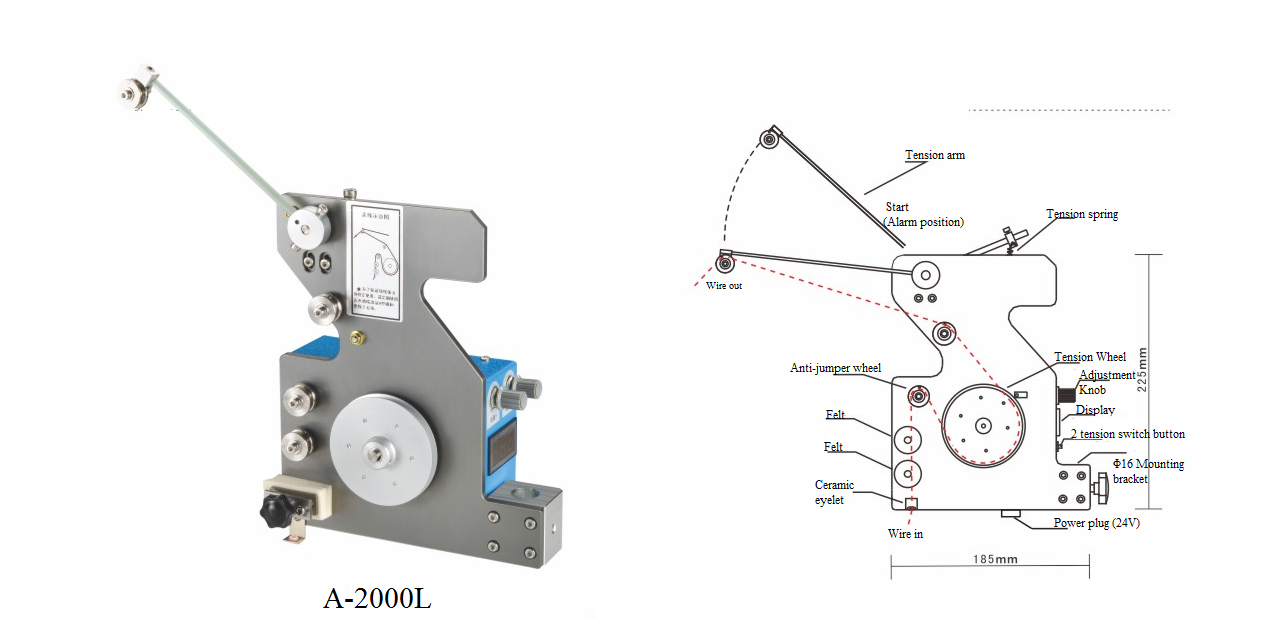

A-2000L | Φ0.2-Φ0.65 | 200-2000 |
A-5000L | Φ0.5-Φ1.2 | 500-5000 |
Electronic tensioner is controlled by hysteresis torque, which is generated by internal electromagnetic brake controlled by excitation current. It has following features.
1. High precision (+/-2%).
2. Frictionless electromagnetic control technology.
3. 2 tension setting (by adjusting current on LED display).
4. Switch signal to rapid change output tension, smart control.
5. Stable tension value, easy to adjust,
6. It is suitable for all kinds of transformers, motors, coils and winding production.
7. Compatible Nittoku, Tanaka, Marsilli etc.winding machine
Test conditions: uniform wire speed 5m/b (based on round bobbin)
